Head to head

ChargePoint Home Flex vs Emporia Pro

Two chargers aimed at the same buyer -- the one whose panel is the obstacle -- with two different theories of how to help. One lets you pick a number; the other picks it for you, continuously.

By Sawyer V. · Published October 17, 2026

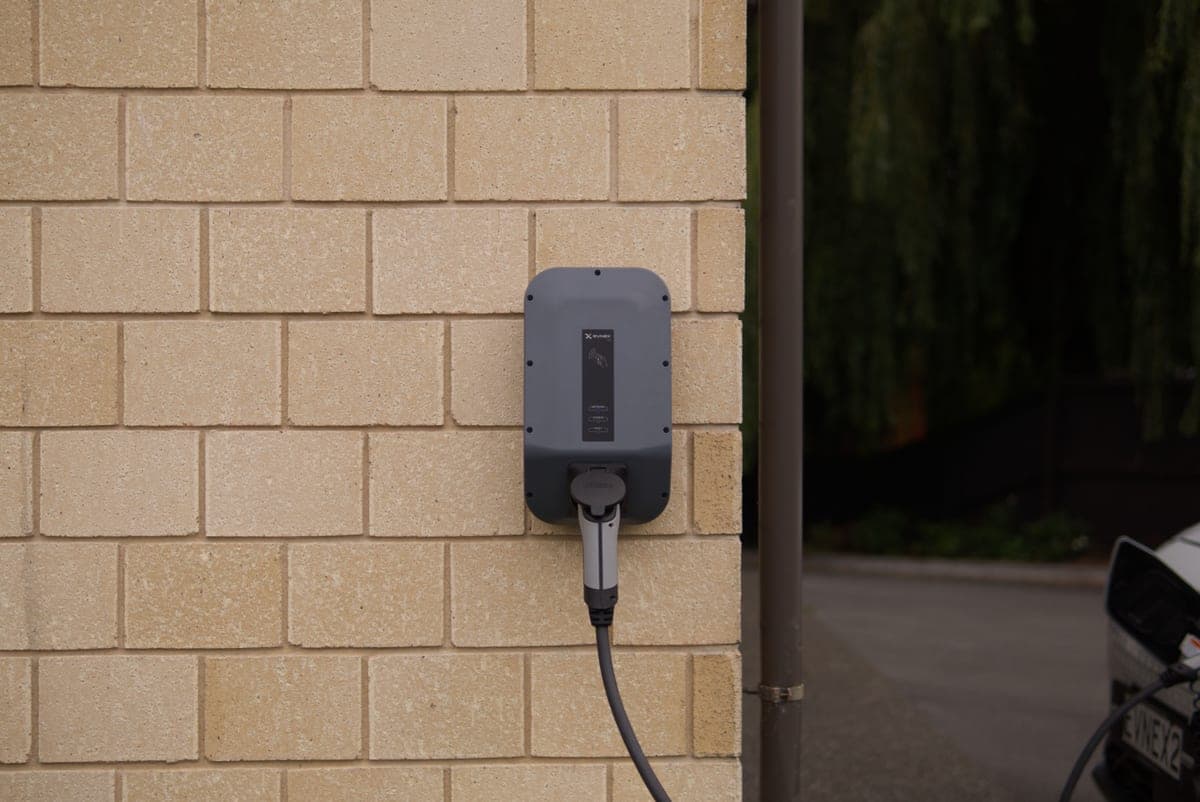

A wall-mounted electric vehicle charging station on a brick wall
Illustrative photo.

How this page is funded: we earn a commission if you buy through our Amazon links, at no extra cost to you. It does not change what we recommend, and we say plainly when the honest answer is to buy nothing. Full disclosure.

The verdict: if an electrician has given you a circuit size, buy the ChargePoint Home Flex, set it to the matching step and never think about it again -- it is the most adjustable charger here and the setting is a one-time job. If the load calculation came back saying there is no room for a dedicated EV circuit at all, buy the Emporia Pro, because a fixed setting cannot react to the dryer and the oven coming on together and PowerSmart can. The tell is whether your constraint is a number or a conflict.

Side by side

What ChargePoint and Emporia publish for each
ChargePoint Home FlexEmporia Pro
Maximum output50 A / 12 kW at 240 V48 A hardwired, 40 A on a plug
Amperage settings16, 24, 32, 40, 48 or 50 AAutomatic, via PowerSmart
Circuit required60 A at 50 A output60 A hardwired, 50 A plug-in
ConnectorSAE J1772J1772 or NACS, chosen at purchase
Cable23 ft25 ft
InstallationHardwired or NEMA 14-50Hardwired, NEMA 14-50, or rear entry
Load managementNot publishedPowerSmart, standard
In the boxChargerCharger plus the Vue 3 energy monitor
CertificationUL listed, ENERGY STARUL certified, GFCI protected
Warranty3 years3 years
Both columns are each maker's own published figures. Live Amazon prices and the date they were read appear on the buy rows below.

Two theories of a small panel

The ChargePoint approach is static. You find out what circuit you can have, set the charger to the highest published step at or below 80% of the breaker, and the charger holds that forever. It is simple, it needs no sensors in your panel, and it works with a charger that has no idea what the rest of the house is doing. How to set your EV charger's amps is the procedure and the 80% arithmetic.

The Emporia approach is dynamic. The Vue 3 in the panel measures the whole house, and the charger gives way when something else needs the capacity. The upside is that the charger can be allowed a bigger share than a static calculation would permit, because the share is conditional. The downside is a second device inside your panel and a dependency on it: PowerSmart needs the Vue installed, and that is electrician work rather than a setting.

Which approach suits which finding
What your load calculation saysThe better fit
"You have room for a 40-amp circuit"Home Flex, set to 32 A
"You have room for a 60-amp circuit"Home Flex, set to 48 or 50 A
"There is no spare capacity for an EV circuit"Emporia Pro, with PowerSmart
"Your service is 100 A"Emporia Pro -- Emporia names 60 and 100 A services
"Upgrade the panel first"Either, after the upgrade; price the upgrade too
Load management is an alternative to a panel upgrade, not a substitute for a load calculation. Do the calculation first either way.

The 50-amp question

The Home Flex's top setting is 50 amps, which is genuinely rarer than 48 and sounds like an advantage. In practice it is about one mile per hour of charging, and it asks for a bigger circuit than most panels can spare.

What 50 A actually buys

50 A x 240 V = 12.0 kW. 48 A x 240 V = 11.5 kW.

At 37 kWh/100 mi: 12.0 kW is about 32 mi/h, 11.5 kW is about 31 mi/h.

Over a nine-hour night: about 292 miles against 280.

And the car decides anyway -- a vehicle that accepts 11.5 kW takes 11.5 kW from either.

So treat 50 amps as a tiebreaker, not a reason. 32A vs 40A vs 48A covers why the tiers below matter far more than the tier above.

Connector, which is the quiet difference

The Home Flex is J1772 only. The Pro is sold in J1772 or NACS, chosen at purchase. For most households this is a non-issue -- every Tesla ships with a J1772 adapter, per the Department of Energy, and cars with a native NACS port come with one too. It becomes a real issue only if you want a NACS connector on the wall with no adapter in daily use, in which case the Pro is the one that offers it. Best NACS EV charger ranks that category, and NACS vehicles records which cars have the port.

Which to buy

  • You know your circuit size: Home Flex. Set it once to the matching step and move on.
  • Your panel has nothing spare: Emporia Pro. This is the case PowerSmart was built for.
  • You want energy data without a second purchase: Emporia Pro -- the Vue 3 is in the box.
  • You want a NACS connector on the wall: Emporia Pro, specified as NACS at purchase.
  • You want the lowest idle draw on paper: Home Flex, which carries the ENERGY STAR listing.
  • You want the longest cable: Emporia Pro, by two feet.
  • Neither feature matters to you: buy on price from best home EV chargers.

Both units, with live prices

The Home Flex first, because the static answer is the right one for more houses. Live Amazon prices with the date they were read.

1. Homes with an uncertain panel

ChargePoint Home Flex

ChargePoint Home Flex

ChargePoint · J1772 · 50 A / 12 kW · 23 ft cable

The most adjustable unit here. It can be set anywhere from 16 A to 50 A, which makes it the one to buy when you do not yet know what your panel will allow.

What is good

  • Six selectable amperage settings from 16 A to 50 A
  • Sold in both hardwired and NEMA 14-50 versions
  • Rated for indoor or outdoor installation
  • The app is mature and does not require a subscription

What is not

  • 23 ft is a foot shorter than the longest cables in this group
  • The 50 A setting needs a bigger circuit than most panels have spare
Published specifications for the ChargePoint Home Flex
Maximum output50 A / 12 kW at 240 V
Amperage settings16, 24, 32, 40, 48 or 50 A
ConnectorSAE J1772
Cable23 ft
InstallationHardwired or NEMA 14-50
CertificationUL listed, Energy Star
Warranty3 years

Skip this if: Skip it if your circuit is already fixed and you just want the cheapest safe 40 A unit. You are paying for flexibility you will not use.

Specifications above are the manufacturer’s published figures. Source: ChargePoint, ChargePoint. We have not tested this unit — see how we pick.

$516.71 · View on Amazon#ad how we are funded · price as of October 17, 2026

2. A tight panel

Emporia Pro EV Charger

Emporia Pro EV Charger

Emporia · J1772 · 48 A / 11.5 kW · 25 ft cable

Emporia's 48-amp charger with PowerSmart load management built in: the Vue 3 energy monitor comes in the box, and the charger backs off when the rest of the house is busy. The one to look at when your panel is the obstacle.

What is good

  • PowerSmart load management included, not an add-on
  • Vue 3 energy monitor in the box, for whole-home data
  • Emporia says it works even with older 60 or 100 amp services
  • J1772 or NACS connector options

What is not

  • PowerSmart needs the Vue installed in your panel -- electrician work
  • Costs more than the Emporia Classic, which charges at the same 48 A
  • Only worth it if your panel is the constraint
Published specifications for the Emporia Pro EV Charger
Maximum output48 A hardwired; 40 A with a NEMA plug
ConnectorJ1772 or NACS, chosen at purchase
Cable25 ft
Load managementPowerSmart, standard
In the boxEmporia Vue 3 energy monitor
InstallationNEMA 14-50 plug or hardwired; rear-entry option
CertificationUL certified, GFCI-protected
Warranty3 years

Skip this if: Skip it if your panel has comfortable room for a full EV circuit. Without that problem you are paying for load management you will not use -- the Emporia Classic charges at the same 48 A.

Specifications above are the manufacturer’s published figures. Source: Emporia Energy, Emporia Energy, Classic vs Pro, Emporia Energy, store. We have not tested this unit — see how we pick.

$599.00 · View on Amazon#ad how we are funded · price as of October 17, 2026

FAQ

Questions people actually ask

ChargePoint Home Flex or Emporia Pro?
Home Flex if you know what circuit you can have -- it publishes six settings from 16 A to 50 A and holds whichever you pick. Emporia Pro if your panel has no spare capacity at all, because its PowerSmart load management adjusts in real time and a fixed setting cannot.
Is 50 amps better than 48?
By about one mile per hour of charging. 50 A at 240 V is 12.0 kW against 11.5 kW at 48 A, which is roughly 292 miles over a nine-hour night against 280 for a car rated 37 kWh/100 mi. Both need a 60-amp circuit, and the car's onboard charger usually sets the real ceiling.
Does the Emporia Pro need the Vue monitor to work?
The charger charges without it, but PowerSmart -- the reason to buy the Pro over Emporia's cheaper Classic -- requires the Vue 3 installed in your electrical panel. It comes in the box, and fitting it is electrician work.
Can the ChargePoint Home Flex charge a Tesla?
Yes, using the J1772 adapter that comes with the car. The Department of Energy notes that all Tesla vehicles ship with one, which is why a J1772 charger suits a Tesla household. If you want a NACS connector on the wall instead, the Emporia Pro is sold in that version.
Which one can be plugged in rather than hardwired?
Both. ChargePoint sells hardwired and NEMA 14-50 versions of the Home Flex, and the Emporia Pro can be hardwired at 48 A, plugged in at 40 A, or fed from the rear with conduit.
Which has the better warranty?
They are level: both makers publish three years.

Sources

Where these numbers come from

  1. ChargePoint Home Flex specifications and ordering information — ChargePointMaximum 50 A / 12 kW at 240 V with amperage settings of 16, 24, 32, 40, 48 and 50 A, SAE J1772, 23 ft cable, UL listed and ENERGY STAR certified, 3-year limited warranty.
  2. ChargePoint Home Flex installation FAQ — ChargePointPublished installation options: hardwired and NEMA 14-50 plug-in versions.
  3. Emporia Pro EV Charger — Emporia Energy48 A hardwired or 40 A with a NEMA 14-50 plug, 11.5 kW, J1772 or NACS chosen at purchase, 25 ft cable, PowerSmart load management included, Emporia Vue 3 energy monitor supplied in the box, rear-entry install option, UL certified and GFCI protected, 3-year warranty. Emporia says it works even with older 60 or 100 amp services.
  4. Emporia Classic vs. Pro EV chargers: which is right for you? — Emporia EnergyHow PowerSmart works; 48 A hardwired against 40 A with a NEMA plug; the rear-entry option. Fetched 2026-09-10.
  5. Electric Vehicle Charging Stations: AC Level 2 equipment — U.S. Department of Energy, Alternative Fuels Data CenterAC Level 2 adds roughly 25 miles of range per hour of charging and runs from 240 V residential or 208 V commercial service. All Tesla vehicles come with a J1772 adapter, which allows them to use non-Tesla Level 2 charging equipment. Cars sold with a native J3400 (NACS) port use that connector for all charging levels. Read 2026-10-17.
  6. Fuel economy of 2026 Cadillac and GMC vehicles — U.S. EPA and U.S. Department of Energy, fueleconomy.govPublished consumption ratings used in the range arithmetic here: Cadillac Lyriq 37 kWh/100 mi, GMC Sierra EV 50 kWh/100 mi, GMC Hummer EV 70 kWh/100 mi (2025). Read 2026-10-11.
  7. NEC Article 625: EV Charging Equipment — WireRefEV charging is a continuous load, so the branch circuit is sized at 125% of the charger's rated current -- a 48 A charger requires a 60 A circuit. Each EVSE requires a dedicated branch circuit unless an approved energy management system controls the load. Read 2026-10-17.
