Outdoor EV charging: what needs a cover

How this page is funded: we earn a commission if you buy through our Amazon links, at no extra cost to you. It does not change what we recommend, and we say plainly when the honest answer is to buy nothing. Full disclosure.

The verdict first. If your charger is hardwired and its maker publishes a NEMA Type 4, 4X or 3R rating, it does not need a cover, a shelter or a bag -- it needs nothing. If your charger plugs into an outdoor NEMA 14-50, that outlet needs an extra-duty, 2-gang, while-in-use cover, and that is the one genuine purchase on this page. If the outlet is not installed yet, buy the Leviton kit and hand the whole thing to your electrician. If it is already on the wall, buy the TayMac cover that fits over it.

Start with what your charger already claims

Enclosure ratings are the reason most of this category is unnecessary. A NEMA Type 4 enclosure is a watertight rating; Type 3R is a rain rating. Chargers on this site that publish one include the Grizzl-E family at UL Type 4, the Enphase HCS-80 at NEMA Type 4, the DEWALT at IP66 described as a NEMA 4X type, Autel's 80-amp unit at NEMA 3S with an IK10 impact rating, and Leviton's EV480 at NEMA Type 3R. A rated charger in the rain is doing what it was designed and tested to do.

The mistake: a 1-gang cover on a 2-gang outlet

Search for a weatherproof outlet cover and you will be shown a one-gang bubble cover for about ten dollars. It is a good product for the wrong job. A NEMA 14-50 receptacle is a two-gang device, so a one-gang cover physically cannot go over it. The depth matters too: TayMac publishes 2-3/4 inches nominal on its clear two-gang cover, 3.07 inches actual, and that volume has to swallow a chunky EV plug and the bend in a thick cable. Measure your plug before you order anything.

The other word to look for is extra duty. Hubbell lists its two-gang clear cover as Extra Duty rated, UL Listed and NEMA 3R, in high-impact polycarbonate, with a lockable tab that takes a 1/8-inch padlock shackle, an attached gasket and the mounting hardware in the box. One wrinkle to know before you fit it: the 55-in-1 adapter set ships pre-configured for a GFCI device, so it has to be rearranged for a 14-50 opening.

Or buy the outlet and the cover as one part

If the receptacle has not been installed yet, the simpler route is Leviton's EVCVP-50, which is a 50-amp, 125/250-volt, three-pole, four-wire heavy-duty EV-grade NEMA 14-50R receptacle and a clear extra-duty while-in-use cover sold as one kit. Leviton rates the cover NEMA 3R in UV-resistant polycarbonate, says the lid locks with a NEMA 14-50P EV plug inserted, lists cULus and a -40 C to 60 C operating range, and cites compliance with 2020 NEC 625.56. Two honest notes: the two-gang outdoor box is sold separately, and Leviton's own instructions say to run silicone around the back gasket for a weather-tight seal.

Which receptacle goes behind the cover

If you are buying the receptacle separately, buy a good one. The failure mode on an EV circuit is not the cover; it is a builder-grade receptacle carrying 40 amps continuously for years until its contacts heat and char. Best NEMA 14-50 outlet ranks the industrial-grade parts and explains what actually fails. That page and this one are the two halves of the same install.

The lockable box is a different product

A steel enclosure with a padlock solves access and tampering, not weather -- and VIVO, whose box is the one credible branded option we have found, publishes no IP or NEMA rating for it at all. It is the right buy for an exposed driveway or a shared parking area, and pointless in a locked garage. It also has to physically fit your charger, so compare both sets of published dimensions first. Best EV charger pedestals and mounts covers the mounting side of the same question.

And the connector, which is the cheap fix

The part that genuinely suffers outdoors is the connector lying on wet ground, and the fix is a holster, not a cover. Lectron's J1772 dock and J-hook is around twenty dollars and does two jobs: it grips the connector at hand height and takes the weight of the cable. In winter that also keeps a stiff cable out of the slush. Best EV charger cable organizer ranks the category; the Tesla-shaped version is on gifts for Tesla owners.

The outdoor parts worth buying

A matched outlet-and-cover kit, the cover that fits a 14-50 you already own, the lockable box for an exposed spot, and the holster. Live Amazon prices with the date they were read.

1. A plug-in charger outdoors

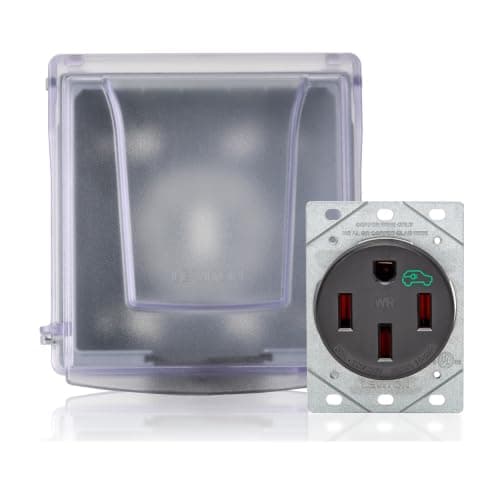

Leviton Weather-Resistant EV Outlet with Clear Cover (EVCVP-50)

Leviton · NEMA 14-50 · 50 A / 12 kW

The purpose-built answer for a plug-in charger that lives outdoors: a 50-amp EV-grade NEMA 14-50 receptacle and an extra-duty, lockable while-in-use cover sold as one kit, rated NEMA 3R. You still supply the 2-gang outdoor box.

What is good

• +Receptacle and extra-duty while-in-use cover in one kit, so the parts are known to fit each other
• +Lockable with the EV plug inserted, which is the state an outdoor charger spends its life in
• +NEMA 3R and cULus, with a published -40 C to 60 C range
• +Heavy-duty EV-grade receptacle rather than the cheap builder-grade part
• +Leviton cites a specific code section (2020 NEC 625.56) rather than a vague claim

What is not

• −The 2-gang outdoor box is sold separately -- budget for it and the labor
• −Leviton says to apply silicone around the back gasket for a weather-tight seal, so it is not seal-free out of the box
• −1-year warranty, against 3 years on most of the chargers it serves
• −Copper only: Leviton explicitly rules out aluminum and copper-clad conductors on this device
• −Pointless on a hardwired charger

Published specifications for the Leviton Weather-Resistant EV Outlet with Clear Cover (EVCVP-50)

Receptacle	NEMA 14-50R, 3-pole, 4-wire, grounding
Rating	50 A, 125/250 V AC, heavy-duty / EV grade
Cover	Clear polycarbonate, Extra Duty grade, lockable while in use
Enclosure rating	NEMA 3R
Code reference	Leviton lists 2020 NEC 625.56 compliance
Operating temperature	-40 C to 60 C
Box required	2-gang outdoor box, sold separately
Wire	#4, #6 or #8 AWG copper only; #10 AWG solid permitted for ground
Torque	75 in-lb
Face material	Nylon
Warranty	1 year limited
Catalog number	EVCVP-50

Skip this if: Skip it if your charger is hardwired -- there is no plug to cover -- or if the receptacle is inside a dry garage. Skip it too if you wanted a drop-in part: it needs a 2-gang outdoor box, sold separately.

Specifications above are the manufacturer’s published figures. Source: Leviton. We have not tested this unit — see how we pick.

$49.99 · View on Amazon#ad how we are funded · price as of October 17, 2026

2. A 14-50 you already have

TayMac 2-Gang Extra Duty While-In-Use Cover (MM2420C)

TayMac (Hubbell) · Panel-mounted

The generic version of the same job: a 2-gang, UL-listed, Extra Duty, NEMA 3R while-in-use cover that fits over a NEMA 14-50 receptacle you already own. Cheaper than the Leviton kit, and it is a cover only.

What is good

• +Extra Duty and NEMA 3R, which is the grade an outdoor EV receptacle actually needs
• +Lockable tab takes a 1/8 in. padlock shackle
• +Clear lid, so the plug can be seen seated without opening it
• +Attached gasket and mounting hardware included
• +Hubbell publishes a full specification table and a UL listing, which the unbranded covers in this category do not

What is not

• −Cover only -- the receptacle and the box are separate purchases
• −The 55-in-1 adapter set ships pre-configured for a GFCI device, so it has to be reconfigured for a 14-50
• −2.75 in. of depth is the figure to check against your charger's plug and its cable exit
• −Vertical mount only in this catalog number
• −A padlock tab deters casual tampering; it is not security hardware

Published specifications for the TayMac 2-Gang Extra Duty While-In-Use Cover (MM2420C)

Catalog number	MM2420C
Gangs	2-gang
Depth	2-3/4 in. nominal; 3.07 in. actual, per Hubbell
Height x width	5.7 x 5.43 in
Material	High-impact polycarbonate, nonmetallic
Enclosure rating	NEMA 3R
Compliance	UL Listed; Extra-Duty, NEC compliant, per Hubbell
Security	Lockable tab for a 1/8 in. padlock shackle
Configuration	55-in-1 adapter system, pre-configured for GFCI
Mounting	Vertical; Quick-Fit keyhole system
In the box	Attached gasket and mounting hardware
Color	Clear

Skip this if: Skip it if you have not yet bought the receptacle -- the Leviton kit pairs a matched outlet and cover for not much more. Measure first: 2.75 in. of depth does not swallow every EV plug and cable bend.

Specifications above are the manufacturer’s published figures. Source: Hubbell, TayMac. We have not tested this unit — see how we pick.

$20.69 · View on Amazon#ad how we are funded · price as of October 17, 2026

3. An outdoor or shared charger you want locked

VIVO Wall-Mounted EV Charger Protective Box (MOUNT-EVCG1)

VIVO · Panel-mounted

A lockable steel enclosure for a wall-mounted charger, with a tempered glass front so you can still read the status light and two side vents so it does not cook. The honest use case is an exposed or shared parking spot.

What is good

• +Padlock and key, which is the only published anti-access feature in this category on the site
• +Tempered glass front means you can read the charger's status without unlocking it
• +Two side vents, so it is not a sealed box around a device that makes heat
• +Steel with an outdoor powder-coated finish, mountable to stud or masonry
• +3-year warranty and a published specification table

What is not

• −Measure first: a 19.7 x 9.8 x 27.6 in box does not fit every charger, especially 80 A units
• −27.5 lb of enclosure on the wall before the charger goes in it
• −VIVO publishes no IP or NEMA rating for the box, so weatherproofing is not a claim we can check
• −A padlock deters opportunists; it is not a serious security device
• −Pointless in a locked garage

Published specifications for the VIVO Wall-Mounted EV Charger Protective Box (MOUNT-EVCG1)

Product dimensions	19.7 x 9.8 x 27.6 in
Accessory rail	5.9 x 1.4 in
Item weight	27.5 lb
Material	Tempered glass and steel, outdoor powder-coated finish
Front panel	Tempered glass, so charging status is readable with the door shut
Ventilation	Two side vents
Security	Safety padlock and key included
Mounting	Wood stud, or concrete and brick
Compatibility	Most brands of wall-mounted EV charger
Warranty	3 years
SKU	MOUNT-EVCG1

Skip this if: Skip it if your charger is in a locked garage -- it is solving access and weather problems you do not have. Check your charger fits the internal dimensions first.

Specifications above are the manufacturer’s published figures. Source: VIVO. We have not tested this unit — see how we pick.

$149.99 · View on Amazon#ad how we are funded · price as of October 17, 2026

4. J1772 connectors

Lectron J1772 holster dock and J-hook

Lectron · J1772

A steel dock that latches a J1772 connector and a hook for the cable, rated by Lectron for indoor and outdoor use. Fits all J1772 connectors.

What is good

• +Anti-corrosive steel rather than plastic
• +Latches the connector so it stays put
• +Hook keeps the cable off the ground

What is not

• −J1772 only
• −No holder for a portable's control box -- see the holder set
• −Check your charger does not already have a holster

Published specifications for the Lectron J1772 holster dock and J-hook

Fits	All J1772 connectors
Material	Anti-corrosive steel
Use	Indoor or outdoor
In the box	Dock and J-hook, with mounting hardware

Skip this if: Skip it if your connector is a Tesla (NACS) -- this dock is shaped for J1772.

Specifications above are the manufacturer’s published figures. Source: Lectron. We have not tested this unit — see how we pick.

$19.99 · View on Amazon#ad how we are funded · price as of October 17, 2026
